| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-9500D |

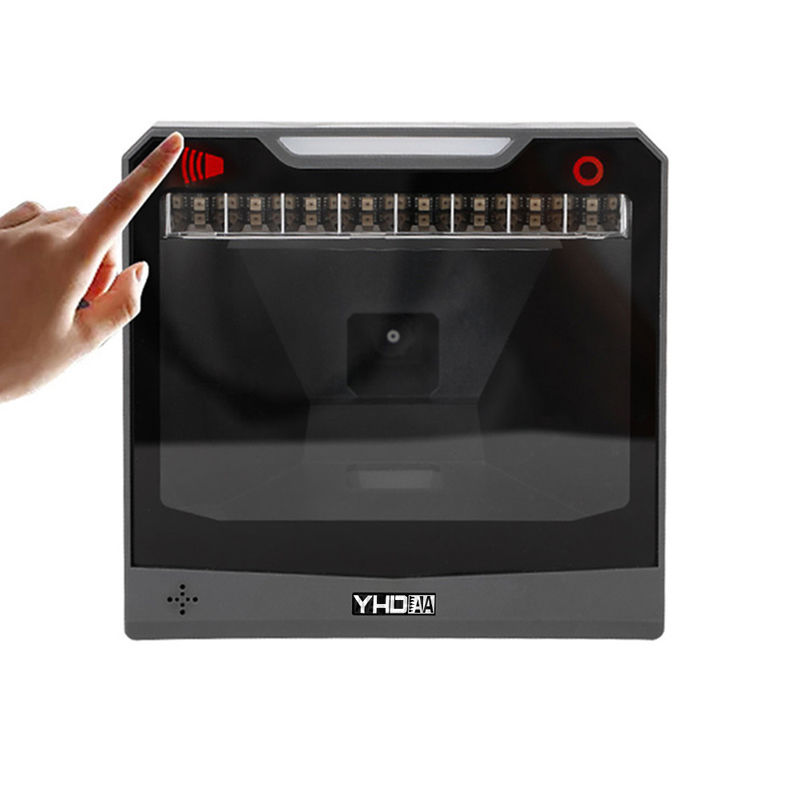

YHDAA 2D CMOS Desktop Barcode Scanner Usb Bar Code Reader
YHD-9500D Desktop Barcode Scanner, a bar code reader with the capability to decode 1D/2D barcodes. With a dimension of 120 X 60 X 30 mm, this 2D Omnidirectional barcode scanner can read barcodes at a fast speed of 2600 scans per second, and with its CMOS 1280 Pixels (H) X 1024 Pixels (V) optical resolution, it can guarantee accuracy and efficiency. The Desktop Barcode Scanner is the perfect device for those who need quick and reliable decoding and scanning of barcodes.
1.Features
● Color:Yellow/ Black/ Green/Blue Optional.
● Excellent decoding ability, high speed and low error rate.
● Built-in 2600mAh battery, super-long standby time.
● Shockproof design, ensures for long service life.
● Supports Handheld/Continuous/Auto-Induction , 3modes for option.
● Adopts 2.4G wireless communication technology, 60m indoors and 100m in open space.
● It can read not only all kinds of 1D barcodes on paper but also barcodes on the mobile phone and computer screen, and it also can read 2D barcodes.
| Product Specification: YHD-5700DW 2D Wireless Barcode Scanner | ||
| Scanner parameters: | ||
| Transmission mode: 2.4G wireless/wired | Storage:100,000 barcodes | |
| Distance:100m/1.5m | CPU:ARM 32-bit Cortex | |
| Sensor:640*480 CMOS | Interface:USB,USB-COM | |
| Resolution :4mil | Light aimer: 617nm LED | |
| Battery: 3.7V-2600mAh | Indication:Buzzer & LED | |
| Decoding speed:500scans/sec | Illumination: 6500K LEDs | |
| Button life :8000,000 times | Printing contract :≥25% | |
|
250Lux Depth of Field |
13mil-EAN13 | 50-250mm |
| 4mil-code39 | 60-100mm | |
| 20mil-QR | 40-300mm | |
| 10mil-PDF417 | 40-280mm | |
|
Decode Capability: 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5, Coda bar,MSI Plessey,RSS,etc. 2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc. |
||
| Trigger Mode:Handheld,Continuous,Auto-Induction | ||
| Scanning angle:Angle of rotation360°,inclination± 65°,declination ± 60° | ||
| Working current:3.3Vx200mA | Standby current :18uA-5mA | |
| Working time :3 to 10 days | Charging power:5V-400mA | |
| Anti inference:0-100000Lux Max | Relative Humidity: 0 ~ 95% | |
| Certificate :CE,FCC,RoHS,IP54 | Drop test :2m | |
3.Packaging Details
Standard List: Scanner*1, Cable *1, Receiver*1, Manual *1, Box *1
Single Package Size: 167*80*100mm
Single Gross Weight: 0.7kg
Single Gross Weight: 0.28kg
