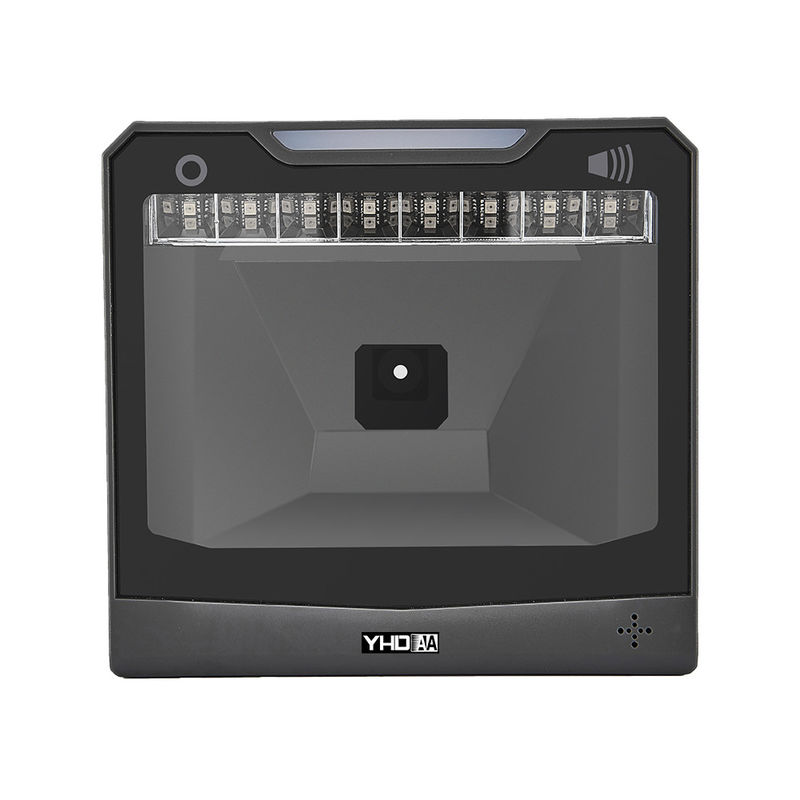

USB Handfree Desktop Barcode Scanner Omnidirectional 1D 2D YHD-9500D

USB Desktop Barcode Scanner Handfree Omnidirectional Reader 1D 2D YHD-9500D

YHD-9500D barcode scanner equipped infrared induction trigger make , the scanner support auto-sensing scanning. when the handsfree barcode scanner in sleeping mode, once the barcode close to the scan window it will be automatically scanned.Perfect for retail and other high-volume scanning applications.

Features

● No need to install any software or app,Plug and play.

● Touch screen volume control button, easily deal with noisy environment.

● Super decoding ability,easily capture all common 2D 1D codes.

● Resolution up to CMOS 1280 pixels (H) x 1024 pixels (V) ,ultra-fast decoding speed.

● Handsfree and auto-sense scan design, can directly place on the desk, no need to hold the scanner, release your hands.

● Big scan window design,360 degree omnidirectional scanning regardless of the orientation of the barcode label, will quickly read the barcode.

● Easily connected with your laptop, PC, POS. Work with Windows XP/7/8/10, Mac OS, Linux.

● Application fields: retail shop, clothing store, supermarket, library, book store, pharmacy store, warehouse, parking system etc.

Technical parameters

Optical resolution : CMOS 1280 pixels (H) x 1024 pixels (V)

Lighting source : Warm Yellow LED

Resolution : 4mil

Scanning speed : 2600 times/s

Scanning angle : Roll 360°/ Pitch ±65°/ Yaw ±65°

Field of View : 44°(H) X34°(V)

Interface type : USB

Prompt mode : Buzzer, LED

Decoding Capability :

1D: Codabar,Code 39,Code 32 Pharmaceutical (PARAF),Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industrial,Straight 2 of 5 IATA,Matrix 2 of 5,Code 11,Code 128,GS1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,MSI,GS1 DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,China Post(Hong Kong 2 of 5),Korea Post.

2D: PDF417, QR code, MicroPDF417, Australian Post, Canada Post,Japan Post, MaxiCode, Codablock, Aztec,Dutch Post, DataMatrix, etc.

Electric voltage : 5V DC

Current : Work Current 456mA, Stand-by Current 220mA, Starting Current 470mA

Ambient Light Immunity : 0-100,000 Lux

Dimensions : 151mm x 142mm x 84mm

Weight : 348g

Working temperature : -20℃～60℃

Storage temperature : -30℃～70℃

Humidity : 5% to 95% relative hum idity,non-condensing

Drop test : 2m

Certificate : CE,FCC,ROHS,IP54,SGS

Packaging Details

Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.

Single Package Size: 245*165*105 mm

Single Gross Weight: 0.7kg
