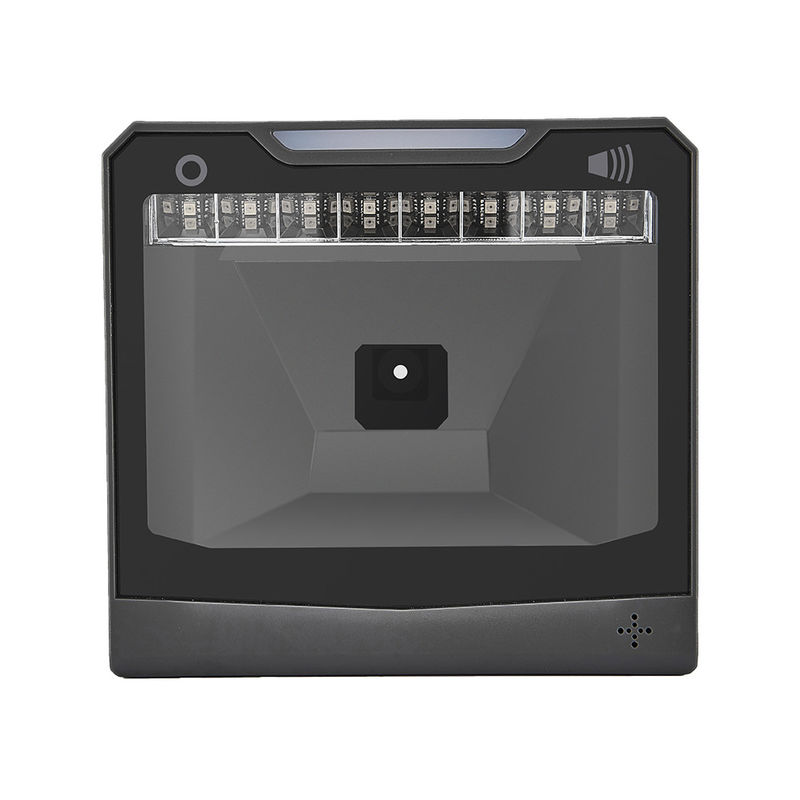

1D 2D USB Desktop Barcode Scanner Automatic Omnidirectional For POS PC

1D 2D Desktop Barcode Scanner,Automatic Image Sensing Qr Code Reader Omnidirectional for POS PC

Compared with a handheld barcode scanner, YHD-9500D desktop barcode scanner will let your handsfree. You don't need to hold it but just place it on your table. It can greatly improve work efficiency of your employees when you run a small business.

Features

● No need to install any software or app,Plug and play.

● Touch screen volume control button, easily deal with noisy environment.

● Super decoding ability,easily capture all common 2D 1D codes.

● Resolution up to CMOS 1280 pixels (H) x 1024 pixels (V) ,ultra-fast decoding speed.

● Handsfree and auto-sense scan design, can directly place on the desk, no need to hold the scanner, release your hands.

● Big scan window design,360 degree omnidirectional scanning regardless of the orientation of the barcode label, will quickly read the barcode.

● With USB interface, No need to install any driver and software, easily connected with your laptop, PC, POS. Work with Windows XP/7/8/10, Mac OS, Linux

● Application fields: retail shop, clothing store, supermarket, library, book store, pharmacy store, warehouse, parking system etc.

Technical parameters

Optical resolution : CMOS 1280 pixels (H) x 1024 pixels (V)

Lighting source : Warm Yellow LED

Resolution : 4mil

Scanning speed : 2600 times/s

Scanning angle : Roll 360°/ Pitch ±65°/ Yaw ±65°

Field of View : 44°(H) X34°(V)

Sweeping barcode type : paper, thin film medium one-dimensional; mobile phone, flat screen, etc.

Printing contrast : 20%

Error rate : ≤1/2,000,000

Interface type : USB

Prompt mode : Buzzer, LED

Decoding Capability :

1D: Codabar,Code 39,Code 32 Pharmaceutical (PARAF),Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industrial,Straight 2 of 5 IATA,Matrix 2 of 5,Code 11,Code 128,GS1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,MSI,GS1 DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,China Post(Hong Kong 2 of 5),Korea Post.

2D: PDF417, QR code, MicroPDF417, Australian Post, Canada Post,Japan Post, MaxiCode, Codablock, Aztec,Dutch Post, DataMatrix, etc.

Electric voltage : 5V DC

Current : Work Current 456mA, Stand-by Current 220mA, Starting Current 470mA

Ambient Light Immunity : 0-100,000 Lux

Dimensions : 151mm x 142mm x 84mm

Weight : 348g

Working temperature : -20℃～60℃

Storage temperature : -30℃～70℃

Humidity : 5% to 95% relative hum idity,non-condensing

Drop test : 2m

Certificate : CE,FCC,ROHS,IP54,SGS

Packaging Details

Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.

Single Package Size: 245*165*105 mm

Single Gross Weight: 0.7kg
