Barcode Scanner Module
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,SGS |
| Model Number | YHD-M100D 2D Barcode Scanner Module |

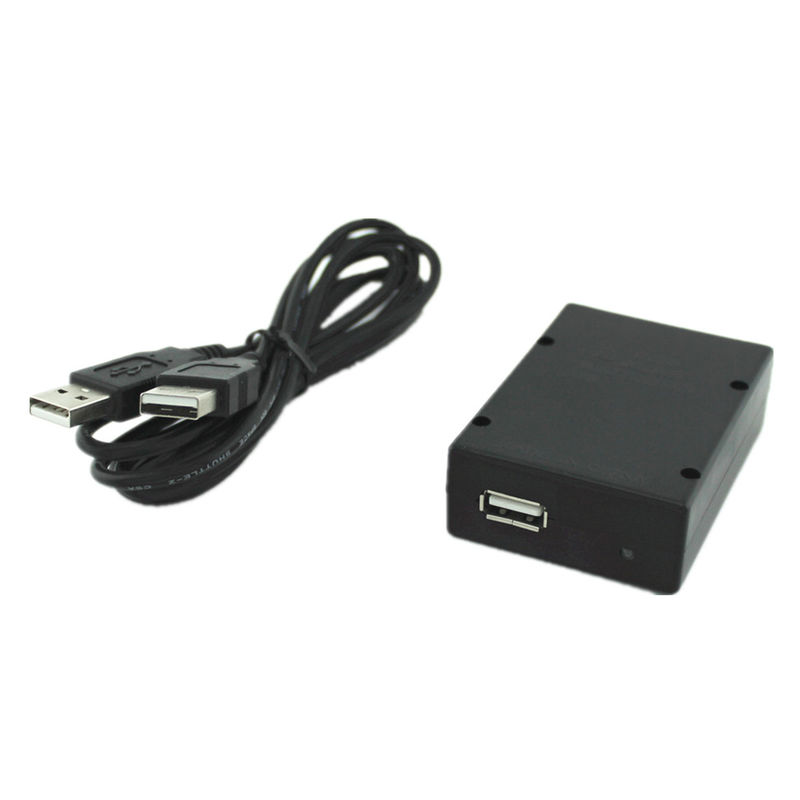

2D Fixed Mount Barcode Reader Omni Directional Bar Code Scanner RS232 USB TTL YHD-M100D
Features
● Powerful decoding capacity for most 1D and 2D codes,plug and play
● Supports Continuous/Auto-Induction , 2modes for option.
● Can scan the phone, computer and other electronic screen.
● Small size,easily to integrate into any device
● Auto-sensing scanning saves power and time -- when the product barcode passes through the scanning window, the module wakes up to read the barcode instantly.
● Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.
● Application fields: parcel locker,supermarket locker, ticket machine, intelligent express cabinet, kiosk,locker, access control machine,logistics, hospital,etc.
● Can be customized according to customer demand.
Technical parameters
Imaging Sensor : CMOS
Optical Source : 620nm Visible red light diode
Trigger Mode : Continuous,Auto-Induction
Indication : Buzzer & LED
Resolution Ratio : 640×480 CMOS
Interface : RS232,USB,TTL,Micro USB
Resolution : 4mil
Dimensions(scanner) : 70×50×23 mm(Length x Width x Height)
Minimum Contrast : ≥ 25%
Decoding Capability : 1D: UPC/EAN,with complementary UPC/EAN,Code128,Code39,
Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.
2D: PDF417 QR Aztec DataMatrix Maxicode MicroPDF417 etc
Scan Angle : Roll 360°, Pitch± 65°, Skew ±60°
Current Max. : 212mA Working :156mA～212mA Stand-by : 156mA
Working Voltage : DC3.3V
Relative Humidity : 0%-95%Relative humidity, no condensation state
Drop test : 1.5m fall to concrete
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner Module*1, Cable *1, Manual *1, Box *1.
