| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-M100L |

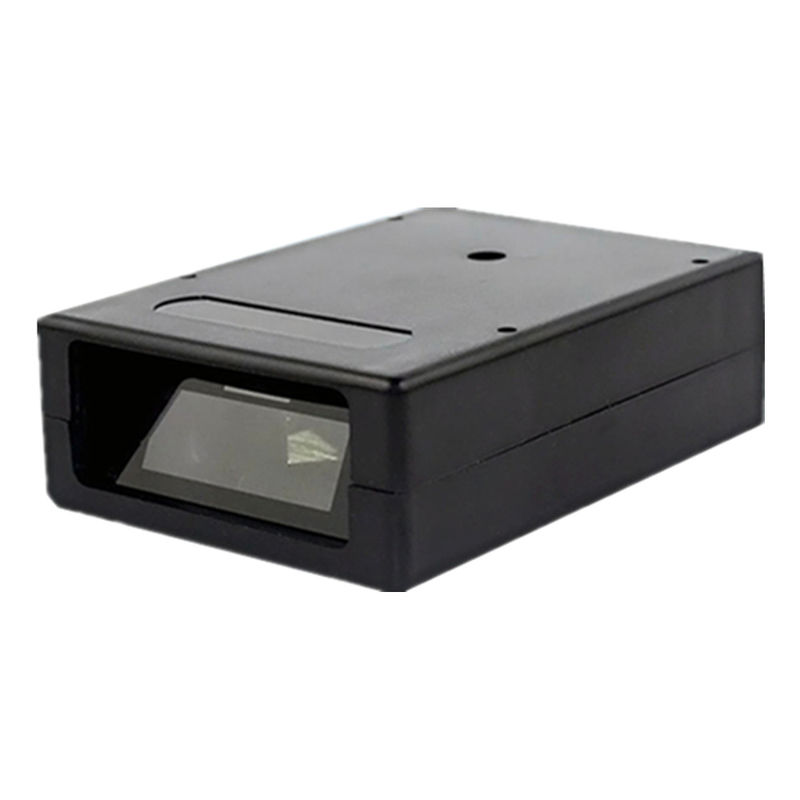

RS232 Fixed Barcode Scanner Module Kiosk Embedded Production Line Mini Reader YHD-1100L
Features
● Mini Size: 7 *5 *2.3cm/ 2.7 *1.9 *0.9in.
● Fast and accurate in reading 1D codes.
● M100L Plug and play, driver-free, convenient for usage.
● M100L Supports Continuous/Auto-Induction , 2modes for option.
● Small size,easily to integrate into any device, especially for limit space application.
● Auto-sensing scanning saves power and time -- when the product barcode passes through the scanning window, the module wakes up to read the barcode instantly.
● Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.
● Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics, hospital,etc.
● M100L Can be customized according to customer demand.
Technical parameters
CPU : ARM 32-bit Cortex
Optical Source : Visible laser diode, wavelength 650nm
Trigger Mode : Continuous,Auto-Induction
Indication : Buzzer & LED
Decoding Speed : 300times/second
Interface : USB,Micro USB,TTL,KB,RS232
Resolution : 4mil
Dimensions(scanner) : 70×50×23 mm(Length x Width x Height)
Weight : (without cable) 47g
Minimum Contrast : ≥ 25%
Decoding Capability : UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.
International general 1D barcodes.etc
Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),25-340mm Code 39(20MIL),15-500mm Code 39(40MIL)
Scan Angle : Tilt ±60°, Rotate ± 65°, Deflection ±42°
Working Voltage : DC5/3.3 V ± 10%
Current Max. : 156mA Working : 52mA～156mA Stand-by : 52mA
Relative Humidity : 0%-95%, no condensation state
Drop Test : 1.5m fall to concrete
Certificate :CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner Module *1, Cable *1, Manual *1, Box *1.
Single Package Size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232)
Single Gross Weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232)
Carton: 50pcs/7KG( USB/TTL/Micro USB) ; Carton Size: 470*220*260mm
Carton: 50pcs/9KG(RS232) ; Carton Size: 600*300*240mm
