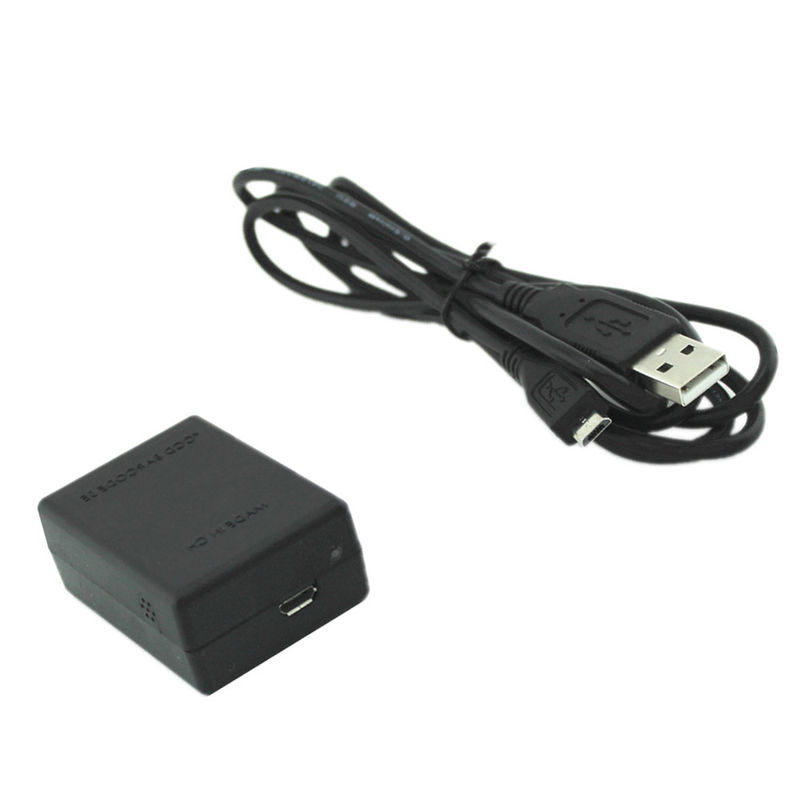

Fast Decoding Barcode Scanner Module Fixed Mount CCD Barcode Scan Engine

YHDAA Fast Decoding CCD Fixed Barcode Scanner Module,Bar Code Engine For Self-service Machines

Plug and play,The Auto-sensing scanning saves power and time ,when the product barcode passes through the scanning window, the module wakes up to read the barcode instantly.The compact size has strong compatibility and versatility, and can be easily embedded in other terminal devices, Such as Locker, KIOSK, logistics express cabinets, independent card issuing machines, self-service ticket picking machines, automatic ticket checking machines, etc.

● Can be customized according to customer demand.

Technical parameters

CPU : ARM 32-bit Cortex

Optical Source : 620nm Visible red light diode

Resolution : Ratio 2500 pixel

Imaging Sensor : CCD

Trigger Mode : Continuous,Auto-Induction

Indication : Buzzer & LED

Decoding Speed : 300times/second

Interface : Micro USB,TTL,RS232,USB

Resolution : 4mil

Decoding Capability UPC/EAN,with complementary UPC/EAN,Code128,Code39,

Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

International general 1D barcodes.etc

Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),25-340mm Code 39(20MIL),15-500mm Code 39(40MIL)

Scan Angle : Tilt ±60°, Rotate ± 65°, Deflection ±42°

Current Max. : 86mA Working :33mA～86mA Stand-by : 33mA

Working Voltage : DC5/3.3 V ± 10%

Storage Temperature : -40°C ~ 70°C / -40°to 158°F

Working Temperature : -20°C ~ 60°C / -4°to 140°F

Packaging Details

Standard List: Scanne Module*1, Cable *1, Manual *1, Box *1.

Single Package Size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232)

Single Gross Weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232)
