Barcode Scanner Module
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-M803D |

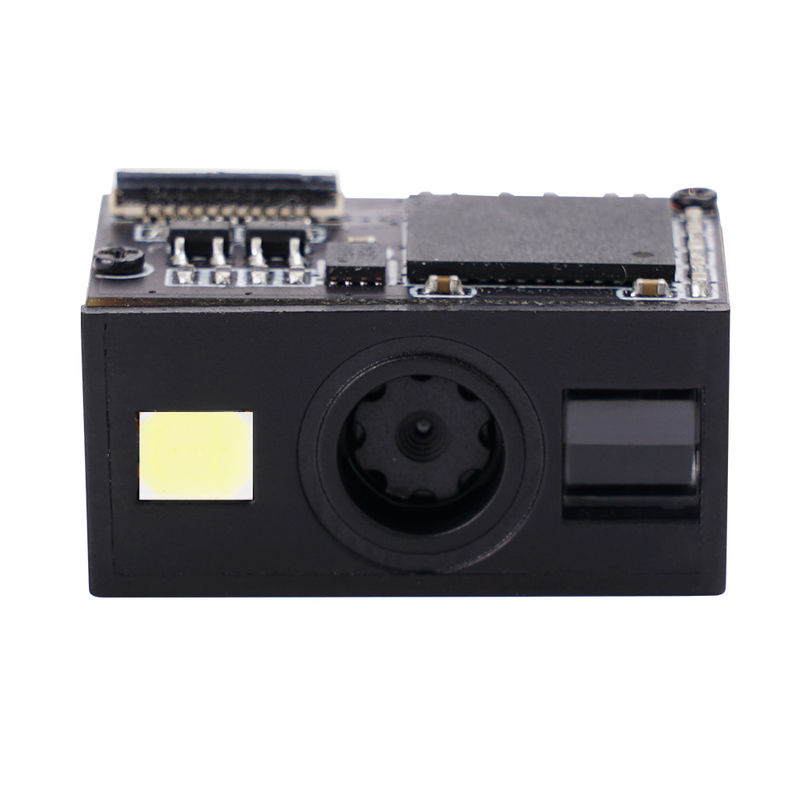

Mini Bar Code Reader Android Module,Embedded 2D Scan Module for PDA POS Kiosk
The YHD-M803D provides customers with a variety of settings in terms of functions. For example, the scanning method can be triggered by keystrokes or automatic continuous scanning, the communication method can be selected from USB or virtual serial port, the prefix or suffix can be added to the barcode data, and a variety of terminators can be selected.
Features
● Mini Size: 2.15 *1.45 *1.0cm/ 0.84 *0.57 *0.39in.
● Plug and play, driver-free, convenient for usage.
● Support to read 1D 2D Codes on screen and paper.
● 3 kinds of output interfaces, TTLRS232USB. Meet more interface requirements.
● Powerful decoding capacity for most 1D and 2D codes,can read incomplete and fuzzy codes.
● Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.
● Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics, hospital,PDA,etc.
● Can be customized according to customer demand.
Technical parameters
Imaging Sensor : CMOS
Optical Source (Aim) red LED, (Illumination)white LED
Trigger Mode : Auto-sensing scanning
Indication : Buzzer & LED
Resolution : Ratio 640×480 CMOS
Decoding Speed : 500times/second
Interface : RS232,USB,TTL,Micro USB
Resolution : 4mil
Minimum Contrast : ≥20%
Decoding Capability : 1D: UPC/EAN,with complementary UPC/EAN,Code128,Code39,
Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.
2D: PDF417, QR , DataMatrix
Depth of field : 43-310mm Code 128(13MIL),45-269mm EAN-13 (13MIL),45-120mm Code 39(5MIL),45-116mm Data Matrix(10MIL),40-105mm PDF417(6.67MIL),15-185mm QR Code(15MIL)
Scan Angle : Roll 360°, Pitch± 55°, Skew ±55°
Field of View : 36°(H) X27°(V)
Current DC : 3.3V Working :150mA Stand-by : 70mA
Working Voltage : DC5/3.3 V ± 10%
Weight : 2g (scanner without cable and development board),10g(scanner with cable and with development board)
Dimensions : 21.5*14.5*10 mm (scanner without development board),44*33*11 mm (scanner with development board)
Drop test : 1.5m fall to concrete
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
