Barcode Scanner Module
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-M802D |

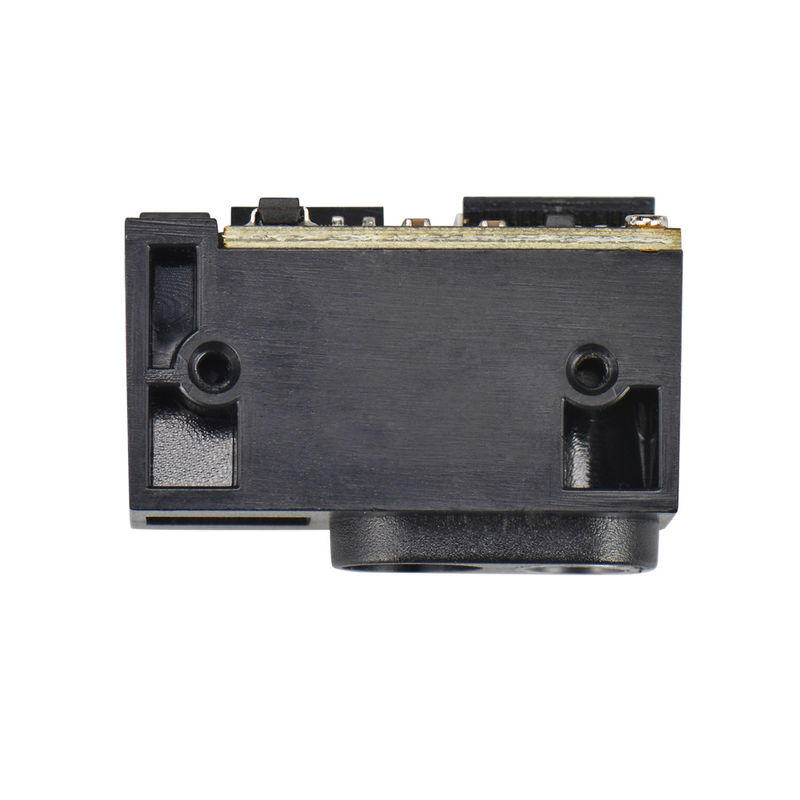

YHDAA 1D 2D Barcode Scanner Module OEM Scan Engine,Barcode Reader Engine for Pda/handheld Scanner
A small 1D/2D codes reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately.Through the onboard USB and UART interface, it can be directly plugged into a computer, or be easily integrated to kinds of devices due to its small form factor.
Features
● Supporting the RS232,USB,TTL,Micro USB interface.
● Support inserting characters at any position and character replacement.
● Small size,easily to integrate into any device, especially for limit space application.
● Powerful decoding capacity for most 1D and 2D codes,can read incomplete and fuzzy codes.
● Support multi-language output directly, such as Russian, Japanese,Traditional Chinese, Simplified,Chinese, Korean, Thai, etc.
● Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.
● Can be customized according to customer demand.
Technical parameters
Imaging Sensor : CMOS
Optical Source : (Aim) Green LED, (Illumination)white LED
Trigger Mode : Auto-sensing scanning
Indication : Buzzer & LED
Resolution : Ratio 640×480 CMOS (300,000 pixel)
Decoding Speed : 500times/second
Interface : RS232,USB,TTL,Micro USB
Resolution : 4mil
Minimum Contrast ≥ 25%
Decoding Capability : 1D: UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.
2D: PDF417 QR Aztec DataMatrix Maxicode MicroPDF417 etc
Depth of field : 40-100mm Code 39(5MIL),50-220mm EAN-13 (13MIL),50-90mm Data Marix(10MIL),30-150mm PDF417(6.67MIL),25-240mm QR Code(20MIL)
Scan Angle : Roll 360°, Pitch± 55°, Skew ±55°
Field of View : 42°Diagonal
Current Working :160mA Stand-by : 20mA
Working Voltage : DC3.3 V
Storage Temperature : -40°C ~ 70°C / -40°to 158°F
Working Temperature : -20°C ~ 60°C / -4°to 140°F
Relative Humidity : 0 ~ 95%
Drop test : 1.5m fall to concrete
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
