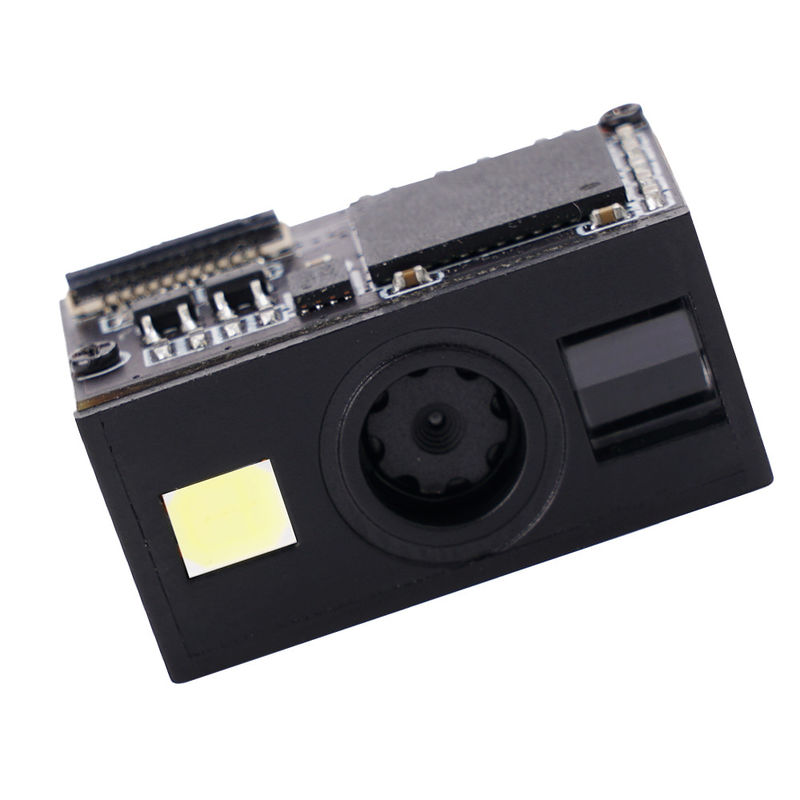

Embedded Barcode Scanner Module CMOS High Performance PDF417 2D Scan Engine

Embedded Barcode Scanner Module CMOS High Performance PDF417 2D Scan Engine

Brand Name YHDAA
Certification CE,FCC,ROHS,IP54,FDA,SGS
Model Number YHD-M803D
Product Details
Type:
YHD-M803D 2D CMOS Barcode Scanner Module
Mini Size:
2.15 *1.45 *1.0cm/ 0.84 *0.57 *0.39in.
Relative Humidity:
5 ~ 95%
Field Of View:
36°(H) X27°(V)
Drop  test:
1.5m Fall To Concrete
Working:
150mA
High Light:

Embedded Barcode Scanner Module

,

PDF417 Barcode Scanner Module

,

High Performance 2D Scan Engine

Payment & Shipping Terms
Packaging Details
YHD-M803D 2D CMOS Barcode Scanner Module
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

2D CMOS Imaging Embedded Barcode Scanner Module,Small High Performance PDF417 Bacode Scan Engine

1D 2D Codes on screen and paper; Ability to scan blurred, broken, irregular and colorful barcodes; It is long decoding range especially for 1D bar codes.Support secondary development, the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.



Features

● Plug and play, driver-free, convenient for usage.

● Support to read 1D 2D Codes on screen and paper.

● Extremely small and easily fixed into miniature equipment.

● 3 kinds of output interfaces, TTLRS232USB. Meet more interface requirements.

● Powerful decoding capacity for most 1D and 2D codes,can read incomplete and fuzzy codes.

● Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, access control machine,self-service store, check-in machine,factory assembly line,logistics, hospital,PDA,etc.



Technical parameters

Imaging Sensor : CMOS

Optical Source (Aim) red LED, (Illumination)white LED

Trigger Mode : Auto-sensing scanning

Indication : Buzzer & LED

Resolution : Ratio 640×480 CMOS

Decoding Speed : 500times/second

Interface : RS232,USB,TTL,Micro USB

Resolution : 4mil

Minimum Contrast : ≥20%

Decoding Capability : 1D: UPC/EAN,with complementary UPC/EAN,Code128,Code39,

Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

2D: PDF417, QR , DataMatrix

Scan Angle : Roll 360°, Pitch± 55°, Skew ±55°

Field of View : 36°(H) X27°(V)

Current DC : 3.3V Working :150mA Stand-by : 70mA

Working Voltage : DC5/3.3 V ± 10%

Storage Temperature : -40°C ~ 80°C / -40°to 176°F

Working Temperature : -20°C ~ 60°C / -4°to 140°F

Relative Humidity : 5 ~ 95%

Weight : 2g (scanner without cable and development board),10g(scanner with cable and with development board)

Dimensions : 21.5*14.5*10 mm (scanner without development board),44*33*11 mm (scanner with development board)

Drop test : 1.5m fall to concrete

Certificate : CE,FCC,ROHS,IP54,FDA,SGS
