2D Barcode Scanner
>
|
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-1100D |

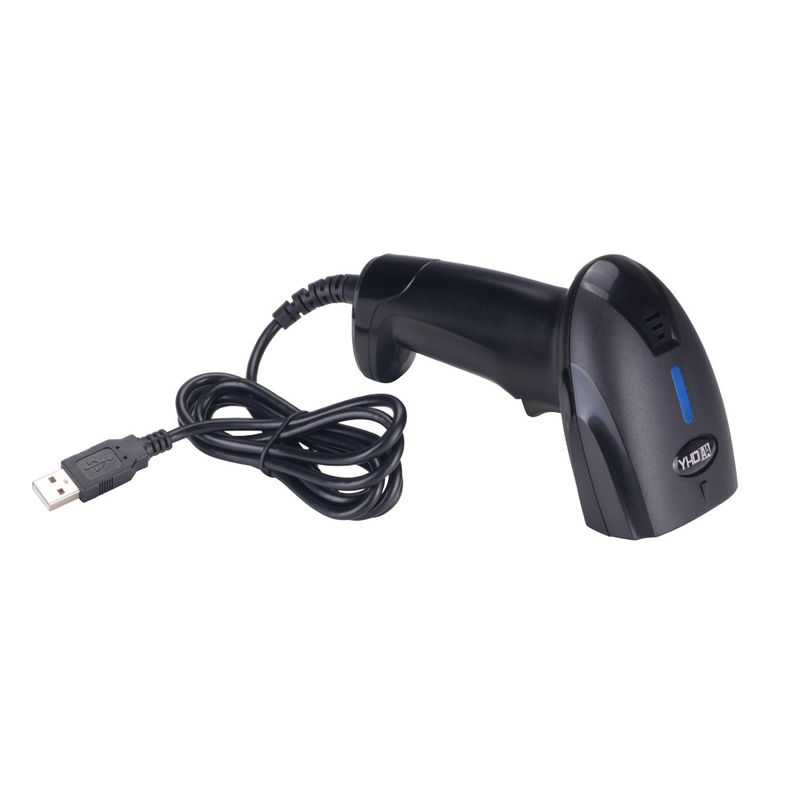

2D usb Barcode Scanner Omnidirectional QR Bar code Reader for Supermarket YHD-1100D
With advanced CMOS sensor, the handheld inventory scanner can easily decode most of 1D 2D QR barcodes on labels, paper and screen more accurate. Even damaged, blurring, incomplete, fuzzy and reflective barcodes can be decoded easily. 1D like: UPC/EAN, Code39, Interleaved 2 of 5, Code93, Code 128, Codabar etc. 2D like: QR, Datamatrix, PDF417, Aztec, etc.
Features
● Factory direct sale, Low price high performance.
● No driver needed, plug and play.
● Support reading bar codes from screen.
● Applying CMOS image technology, easy to scan.
● Powerful decode ability, fast scanning 1D/2D barcodes.
● Support the multinational language keyboard.
● Supports Handheld / Continuous / Auto-Induction , 3modes for option.
● Dopt a highly integrated design, high quality shell, have IP45 protection grade.
● Support connection with computer, laptop. Compatible Operating System for Linux, Windows XP,7,8,10.
● Application fields:Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.
Technical parameters
CPU : ARM 32-bit Cortex
Sensor : CMOS 640*480
Resolution : 4mil
Light aimer : 624nm LED
Printing Contract : ≥25%
Material : ABS+PC
Indication : Buzzer & LED
Interface : USB / RS232 / TTL / KBW
Decoding speed : 500scans/sec
Anti inference : 0-100000Lux Max
Button life : 5000,000 times Voltage:5V DC
Depth of Field : 13mil-EAN13 40-250mm,4mil-code39 50-90mm,20mil-QR 40-290mm,10mil-PDF417 40-260mm
Decode Capability :
1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,RSS,Codabar,ISBN,ISSN,GS1 DataBar(RSS14)etc.
2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Trigger Mode : Handheld,Continuous, Auto-Induction
Scanning angle : Angle of rotation360°, inclination± 65°,declination ± 60°
Current : 80mA(working current), 30mA(standby current )
Temperature : -20℃-50℃(Working) -40℃-60℃(Storage)
Drop test : 2m
Operating Humidity : 5 - 95% (non-condensing)
Certificate : CE,FCC,ROHS,IP54,SGS
Packaging Details
* Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.
* Single Package Size: 185*120*86mm
* Single Gross Weight: 0.45kg
* 30pcs/CTN Carton Size: 438*380*380mm
* 30pcs/CTN Carton G.W.:15Kg, N.W:13.5Kg
