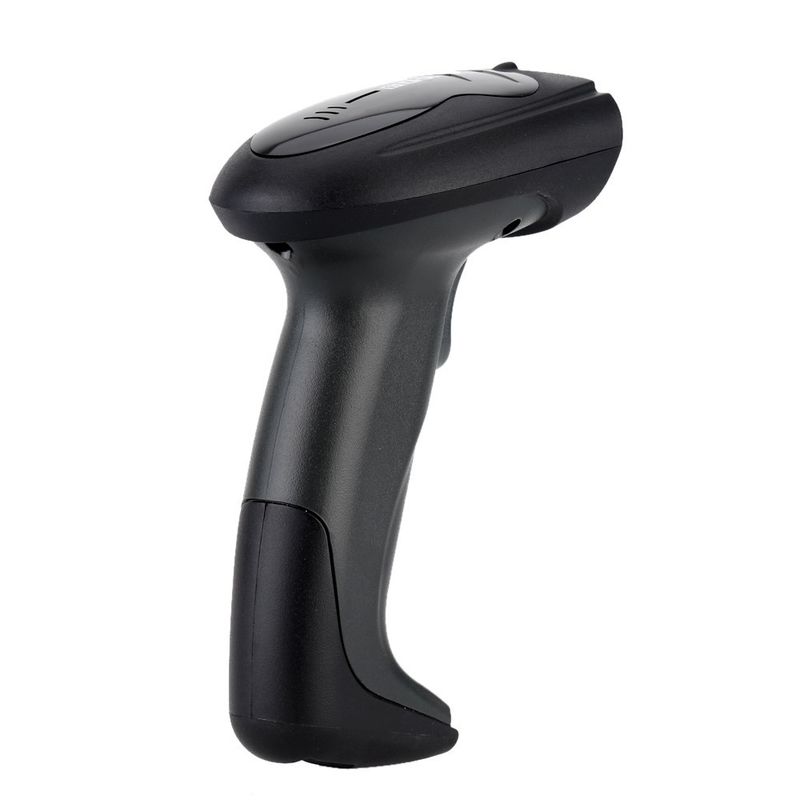

New Wired 1D 2D Qr Code Barcode Scanner Handheld Automatic Scanning Barcode Reader
YHD-1200D is a professional barcode scanner, which can scan and decode 1D/2D/QR codes, supports screen code scanning. Plug and Play, compatible with Linux, Windows XP/7/8/10, Android, Mac.
Features
● Applying CMOS image technology, easy to scan.
● IP54 standard and withstand 3M drops.
● Fast and accurate in reading 1D and 2D codes
● Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens.
● Compatible with USB interface, plug and it working directly.
● Three scanning modes setting: Handheld,Continuous,Auto-Induction.
● YHD-1200D Barcode scanner widely applied in market, warehouse, library, express & logistics industry,
retail store, medical management, etc.
● Can be customized according to customer demand.
Technical parameters
Sensor : CMOS
Trigger mode : Handheld,Continuous,Auto-Induction
Hull material : ABS+Rubber
Promotion pattern : Buzzer and LED indicator
Resolution Ratio : 640*480
Optical Source 620nm Visible red light diode
Decoding speed : 500scans/sec
Resolution : 4mil
Scanning angle : ±360°±65°±60° (Left and right, front and back, rotation)
Decoding capacity 1D : UPC-A, UPC-E, Code 39, Code 39, Code 128, Code 128, EAN128, EAN-8, EAN-13, Codabar,Code93, Discrete2of5, IATA,RSSvariants,Codabar,Industrial 2 of 5,Chinese 2 of 5,Inteleaved2/5,Interleaved2of5 and China postal service code,etc.
2D : PDF417, QR, Aztec, DataMatrix, Maxicode, MicroPDF417,etc.
Depth of Field: 4-8cm Code39(6.6mil)
3-22cm UPC(13mil)
7-33cm Code39(20mil)
3-18cm QR Code(20mil)
System Capacity : For Linux/ Android/ Windows XP/Vista/7/8/10/ Windows Server 2003/2008/2010
Voltage : 5V DC
Button Life: 8000,000 times
System Supported: Windows XP,7,8,10,MAC.
Temperature Storage : -40°C ~ 60°C Working: -20℃ to 50℃
Relative Humidity : 0 ~ 95%
Drop test : 3m fall to concrete
Packaging Details
Standard List: Scanner *1, USB Cable *1, Manual *1, Box *1.
Single Package Size: 167*80*100mm
Single Gross Weight: 0.3kg
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:16Kg, N.W:14Kg
