2D Barcode Scanner
>
|
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-5800D |

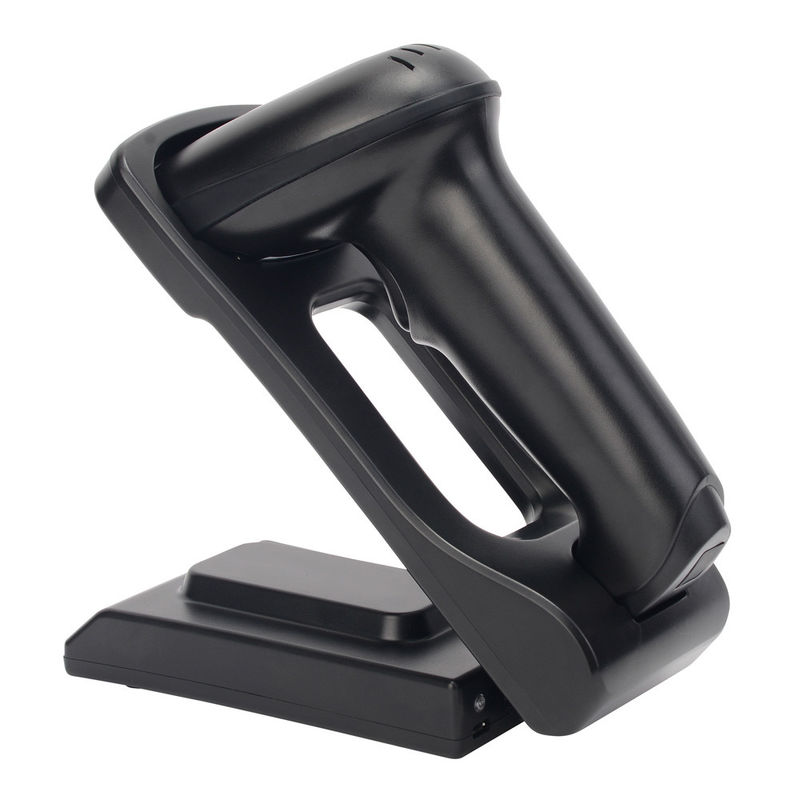

2D Handheld Barcode Scanner CMOS Qr Code Reader Fast Decoding YHD-5800D
Compatible with Windows XP/7/8/10, Linux,Mac. Reads 1D barcodes such as UPC, EAN, Code 39, Code 93, Code 128, Code 11, ISBN etc. Can scan broken barcodes and add customized Prefix/Suffix, End Character etc.
Features
● Color:Yellow/ Black/ Green/Blue Optional.
● Factory direct sale,cheap price.
● Plug and play, work with all POS system.
● Support more 16 kinds keyboard languages, can be used in many countries.
● Supports Handheld/Continuous/Auto-Induction,3modes for option.
● Comes with adjustable scanner stand and Adjust the angle and height according to the need.
Support commercial barcode,pharmacy barcode,logistical barcode,post barcode ,folding barcode,small barcode,barcode covered by film and unclearly printed barcode.ect.
● Application fields:Supermarket,Retail,Warehouse,Logistic,Library,Medical etc.
Technical parameters
CPU:ARM 32-bit Cortex
Sensor : CMOS 640*480
Resolution : 4mil
Light aimer : 624nm LED
Printing Contract :≥25%
Material : ABS+PC
Indication : Buzzer & LED
Drop test : 2m
Decoding speed : 500scans/sec Anti inference:0-100000Lux Max
Button life : 8000,000 times Voltage:5V DC
250Lux Dept of Field : 13mil-EAN13 50-250mm,4mil-code39 60-100mm,20mil-QR 40-300mm,10mil-PDF417 40-280mm
Decode Capability:
1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,RSS,Codabar,ISBN,ISSN,GS1 DataBar(RSS14)etc.
2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Trigger Mode : Handheld,Continuous, Auto-Induction
Scanning angle : Angle of rotation360°,inclination± 65°,declination ± 60°
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, Cable *1, Base*1, Manual *1,Box *1
Single Package Size: 185*120*86mm
Single Gross Weight: 0.4kg
