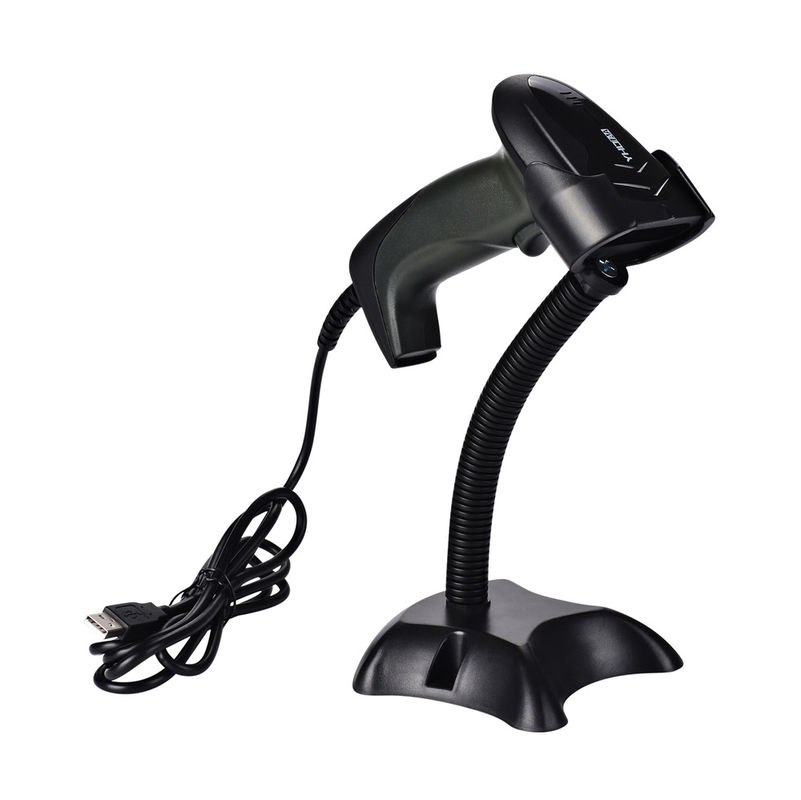

2D Barcode Scanner Data Matrix PDF417 QR Code Scanner With Bracket YHD-1200D+
YHD-1200D+ scanner equipped an adjustable stand, we can freely to adjust the best scanning angel as need. what's more, with auto-sensing scanning sensor, we can easily realize handsfree scannning, no need to hold the linear barcode scanner, release our hands.
Features
● Applying CMOS image technology, easy to scan.
● IP54 standard and withstand 3M drops.
● Multi Languages Keyboard Layout.
● Supports 1D/2D bar-codes on paper/screen.
● Compatible with USB interface, plug and it working directly.
● Three scanning modes setting: Handheld,Continuous,Auto-Induction.
● Support commercial barcode ,pharmacy barcode ,logistical barcode ,post barcode ,folding barcode ,small barcode ,barcode covered by film and unclearly printed barcode.ect.
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Technical parameters
Sensor : CMOS
Trigger mode : Handheld,Continuous,Auto-Induction
Hull material : ABS+Rubber
Promotion pattern : Buzzer and LED indicator
Resolution Ratio : 640*480
Optical Source : 620nm Visible red light diode
Decoding speed : 500scans/sec
Resolution : 4mil
Scanning angle : ±360°±65°±60° (Left and right, front and back, rotation)
Decoding capacity : 1D: UPC-A, UPC-E, Code 39, Code 39, Code 128, Code 128, EAN128, EAN-8, EAN-13, Codabar,Code93, Discrete2of5, IATA,RSSvariants, Codabar, Industrial 2 of 5, Chinese 2 of 5, Inteleaved2/5, Interleaved2of5 and China postal service code,etc.
2D: PDF417, QR, Aztec, DataMatrix, Maxicode, MicroPDF417,etc.
System Capacity For Linux/ Android/ Windows XP/Vista/7/8/10/ Windows Server 2003/2008/2010
Depth of Field : Code39 4mil(2cm-8cm),Code39 8mil(3cm-15cm),EAN13 13mil(6cm-29cm),DM 15mil(2cm-14cm),QR 15MIL(2cm-30cm),PDF417,15mil(4cm-30cm)
Voltage : 5V DC
Drop test : 3m fall to concrete
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, USB Cable *1, Manual *1, A set of stand * 1, Box *1.
Single Package Size: 185*120*86mm
Single Gross Weight: 0.45kg
30pcs/CTN Carton Size: 438*380*380mm
30pcs/CTN Carton G.W.:14Kg, N.W:11Kg
