Handsfree Desktop Barcode Scanner 2D Omnidirectional Automatic Barcode Reader

Name: Handsfree Desktop Barcode Scanner 2D Omnidirectional Automatic Barcode Reader
Brand: YHDAA
SKU: YHD-9300D 2D Desktop
Rating: 4.7 (101 reviews)

Brand Name	YHDAA
Certification	CE,FCC,ROHS,IP54,SGS
Model Number	YHD-9300D 2D Desktop

Product Details

Optical Resolution:

CMOS 640 Pixels (H) X 480 Pixels (V)

Scanning Speed:

1800 Times/s

Decoding Capability:

1D 2D QR Codes

Drop Test:

Prompt Mode:

Buzzer, LED

Dimensions:

140.20mm X 84mm X 90.10mm

High Light:

Handsfree Desktop Barcode Scanner

Automatic Desktop Barcode Scanner

Omnidirectional Automatic Barcode Reader

Payment & Shipping Terms

Packaging Details

YHD-9300D 2D Desktop Barcode Scanner Standard List: Desktop Scanner*1, USB Cable *1, Manual *1, Box *1 * Single Package Size: 170*120*105mm * Single Gross Weight: 0.35kg

Product Description

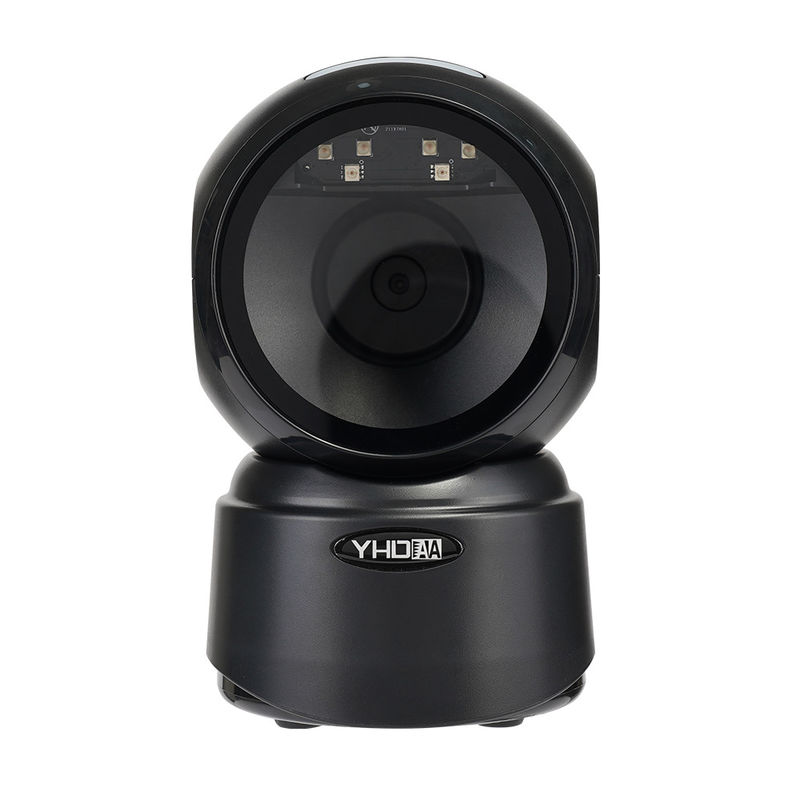

YHDAA Hands-Free 2D QR Omnidirectional Automatic Sensing Scanning USB Desktop Barcode Scanner

YHD-9300D Barcode Scanner Desktop hands-free design, wired scanning platform free your hand and improve the working efficiency. Chip upgrade again, Scanning faster and more sensitive, making the mobile payment more easily, saving time and cost, no longer queuing.

Features

● Scan and decode 1D/2D/QR barcodes, fast scanning speed and high accuracy.

● Factory direct sale, Low price high performance.

● Compatible Operating System for Linux,Windows XP,7,8,10.

● Made of high quality material, 9300D scanner is durable and not easy to damage.

● Manual trigger/continuous scan(for choice),very comfortable operating.

● Dopt a highly integrated design, high quality shell, have IP45 protection grade.

● Application fields:Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.

Product Specification

Optical resolution : CMOS 640 pixels (H) x 480 pixels (V)

Lighting source : red LED supplement

Resolution : ≥4mil

Scanning speed : 1800 times/s

Scanning angle : Roll 360°/ Pitch ±65°/ Yaw ±65°

Printing contrast : 20%

Error rate : ≤1/2,000,000

Interface type : USB

Prompt mode : Buzzer, LED

Decoding Capability :

1D: Codabar,Code 39,Code 32 Pharmaceutical (PARAF),Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industrial,Straight 2 of 5 IATA,Matrix 2 of 5,Code 11,Code 128,GS1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,MSI,GS1 DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,China Post(Hong Kong 2 of 5),Korea Post.

2D: PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN, DOT Code, Codeblock, etc.

Electric voltage : 5V DC

Current : Work Current 320mA, Stand-by Current 235mA, Starting Current 315mA

Ambient Light : Immunity 0-100,000 Lux

Dimensions : 140.20mm x 84mm x 90.10mm

Packaging Details

Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.

Single Package Size: 170*120*105mm

Single Gross Weight: 0.35kg
