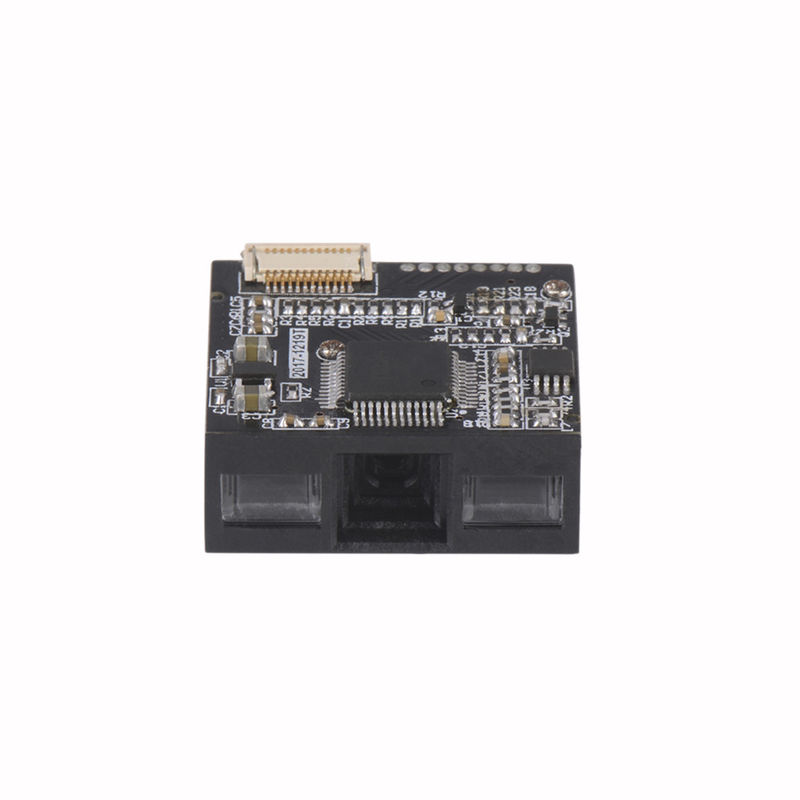

Mini 1D CCD Bar Code Scanner Module Fixed Mount Reader Engine

YHDAA Mini Size 1D CCD Scanner Module, Fixed Mount Barcode Reader Engnine for Vending Machine

A small 1D/2D codes reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately.

Features

● No Driver, plug and play.

● Supporting the RS232,USB,TTL,Micro USB interface.

● Scanning Speed: 280scans/second, fast scanning rate;

● 32 bit processor, More fast than 8 bit and 16 bit barcode scanners.

● Super scanning and decoding ability, can read incomplete and fuzzy codes.

● Small size, Easy to integrate, high-standard automation and can be embedded into a End devices, especially for limit space application.

● Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.

● Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,bank counter machine, factory assembly line,hospital,etc.

Technical parameters

CPU ARM : 32-bit Cortex

Optical Source : 620nm Visible red light diode

Resolution : Ratio 1500 pixel

Imaging Sensor : CCD

Trigger Mode : Auto-sensing scanning

Indication : Buzzer & LED

Infrared induction distance : 50 - 350mm

Decoding Speed : 280times/second

Interface : Micro USB,TTL,KB,RS232,USB

Resolution : 4mil

Decoding Capability : UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

International general 1D barcodes.etc

Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),25-340mm Code 39(20MIL),15-500mm Code 39(40MIL),Scan Angle Tilt ±60°, Rotate ± 65°, Deflection ±42°

Relative Humidity : 0 ~ 95%

Weight : 5g (scanner without cable and development board),12g(scanner with cable and with development board)

Dimensions : 24*22*9 mm (scanner without development board),44*33*10 mm (scanner with development board)

Drop test : 1.5m fall to concrete

Packaging Details

Standard List: Scanner Module *1, Cable *1, Manual *1, Box *1.

Single Package Size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232)

Single Gross Weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232)
