Embedded 1D Barcode Qr Code Scanner Module CCD USB TTL RS232 Interface

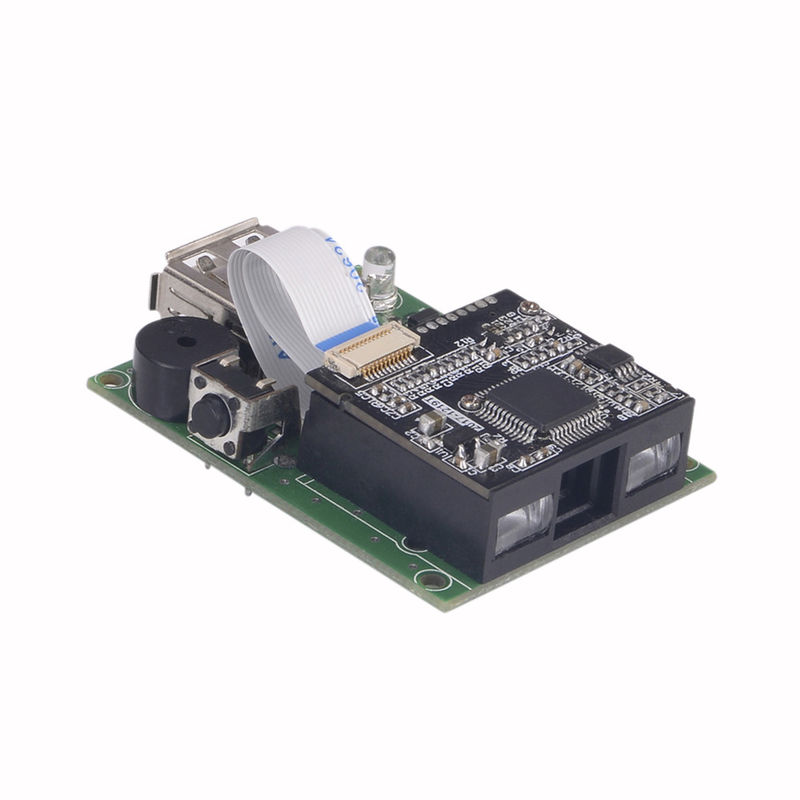

Embedded 1D Barcode Scanner Reader Module, CCD Bar code Engine Module with USB TTL RS232 Interface

Through the onboard USB and UART interface, it can be directly plugged into a computer, or be easily integrated to kinds of devices due to its small form factor.4 kinds of output interfaces, TTL/RS232/USB/Micro USB. Meet more interface requirements.

Features

● Mini Size: 2.4 *2.2 *0.9cm/ 0.9 *0.8 *0.3in.

● No Driver, plug and play.

● Supporting the RS232,USB,TTL,Micro USB interface.

● Scanning Speed: 280scans/second, fast scanning rate;

● 32 bit processor, More fast than 8 bit and 16 bit barcode scanners.

● Super scanning and decoding ability, can read incomplete and fuzzy codes.

● Small size, Easy to integrate, high-standard automation and can be embedded into a End devices, especially for limit space application.

● Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, self-service store, check-in machine, bank counter machine, factory assembly line,logistics,hospital,etc.

Technical parameters

CPU ARM : 32-bit Cortex

Optical Source : 620nm Visible red light diode

Resolution : Ratio 1500 pixel

Imaging Sensor : CCD

Trigger Mode : Auto-sensing scanning

Infrared induction distance : 50 - 350mm

Interface : Micro USB,TTL,KB,RS232,USB

Decoding Capability : UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

International general 1D barcodes.etc

Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),25-340mm Code 39(20MIL),15-500mm Code 39(40MIL),Scan Angle Tilt ±60°, Rotate ± 65°, Deflection ±42°

Working Voltage : DC5/3.3 V ± 10%

Storage Temperature : -40°C ~ 70°C / -40°to 158°F

Working Temperature : -20°C ~ 60°C / -4°to 140°F

Relative Humidity : 0 ~ 95%

Weight : 5g (scanner without cable and development board),12g(scanner with cable and with development board)

Dimensions : 24*22*9 mm (scanner without development board),44*33*10 mm (scanner with development board)

Drop test : 1.5m fall to concrete

Certificate :CE,FCC,ROHS,IP54,FDA,SGS

Packaging Details

Standard List: Scanner Module *1, Cable *1, Manual *1, Box *1.

Single Package Size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232)

Single Gross Weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232)

Carton: 50pcs/7KG( USB/TTL/Micro USB) ; Carton Size: 470*220*260mm

Carton: 50pcs/9KG(RS232) ; Carton Size: 600*300*240mm
