| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-M802D |

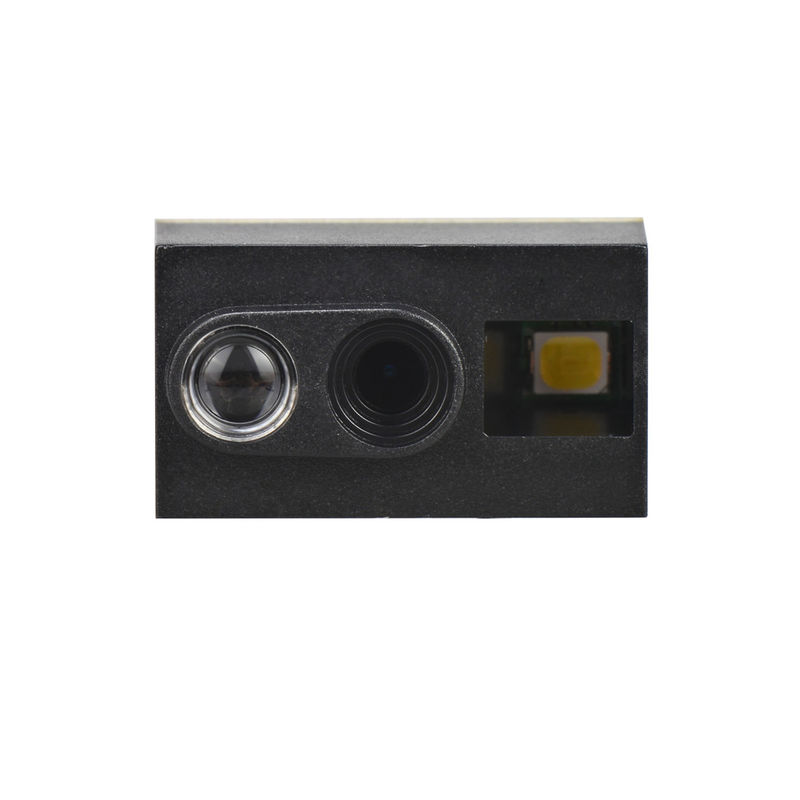

YHDAA 2D Mini Barcode Scanner Engine, Fixed Mount Barcode Reader for Kisok Vending Machine
Equiped with 640*480 CMOS image sensor , read 1D 2D QR codes on screen and paper ; Scans fast and accurately,the scan speed is up to 500times/second. Ability to scan blurred, broken, irregular and colorful barcodes.
Features
● Mini Size: 2.1 *1.6 *1.2cm/ 0.82 *0.62 *0.47in.
● Supporting the RS232,USB,TTL,Micro USB interface.
● Support inserting characters at any position and character replacement.
● Small size,easily to integrate into any device, especially for limit space application.
● Powerful decoding capacity for most 1D and 2D codes,can read incomplete and fuzzy codes.
● Support multi-language output directly, such as Russian, Japanese,Traditional Chinese, Simplified,Chinese, Korean, Thai, etc.
● Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.
● Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics, hospital,PDA,etc.
● Can be customized according to customer demand.
Technical parameters
Imaging Sensor : CMOS
Optical Source : (Aim) Green LED, (Illumination)white LED
Trigger Mode : Auto-sensing scanning
Indication : Buzzer & LED
Resolution : Ratio 640×480 CMOS (300,000 pixel)
Decoding Speed : 500times/second
Interface : RS232,USB,TTL,Micro USB
Resolution : 4mil
Minimum : Contrast ≥ 25%
Decoding Capability : 1D: UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.
2D: PDF417 QR Aztec DataMatrix Maxicode MicroPDF417 etc
Depth of field : 40-100mm Code 39(5MIL),50-220mm EAN-13 (13MIL),50-90mm Data Marix(10MIL),30-150mm PDF417(6.67MIL),25-240mm QR Code(20MIL)
Scan Angle : Roll 360°, Pitch± 55°, Skew ±55°
Field of View : 42°Diagonal
Current Working :160mA Stand-by : 20mA
Working Voltage : DC3.3 V
Storage Temperature : -40°C ~ 70°C / -40°to 158°F
Working Temperature : -20°C ~ 60°C / -4°to 140°F
Relative Humidity : 0 ~ 95%
Drop test : 1.5m fall to concrete
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
