Desktop Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-9300D |

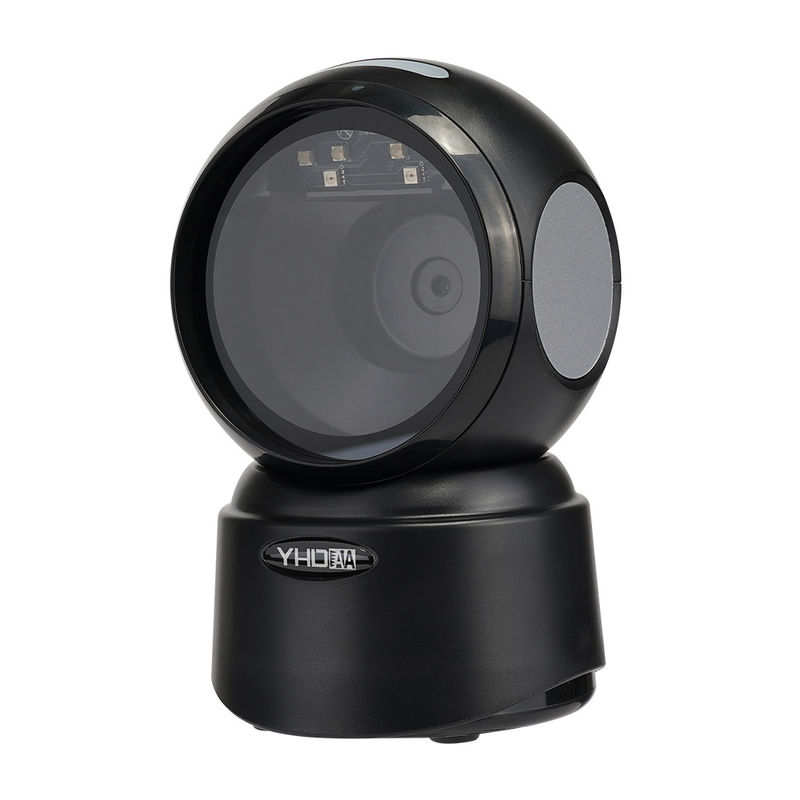

Desktop Barcode Scanner is designed for supermarkets and other retail stores to scan 1D and 2D barcodes quickly and accurately. It is equipped with a red LED supplement lighting source and 20% minimum print contrast. It has a resolution of 4 Mil and a USB interface. The LED light source makes the scanner highly durable and reliable. With the 2D omnidirectional scanning technology, it can not only accurately capture the bar code, but also improve the scanning speed, providing you with a fast and reliable scanning experience.
● Ideal work for Windows XP/7/8/10, Mac OS, Linux.
● 1800 times/ second, ultra-fast decoding speed and high accuracy.
● Made of high quality material, durable and not easy to damage.
● Application fields: retail shop, clothing store, supermarket, library, book store, pharmacy store, warehouse, parking system etc.
| Product Specification: YHD-9300D 2D Desktop Barcode Scanner | |
| Scanner parameters: | |
| Optical resolution | CMOS 640 pixels (H) x 480 pixels (V) |
| Lighting source | red LED supplement |
| Resolution | ≥4mil |
| Scanning speed | 1800 times/s |
| Scanning angle | Roll 360°/ Pitch ±65°/ Yaw ±65° |
| Field of View | 39°(H) X29°(V) |
| Sweeping barcode type | paper, thin film medium one-dimensional; mobile phone, flat screen, etc. |
| Printing contrast | 20% |
| Error rate | ≤1/2,000,000 |
| Interface type | USB |
| Prompt mode | Buzzer, LED |
|
Decoding Capability
|
1D: Codabar,Code 39,Code 32 Pharmaceutical (PARAF),Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industrial,Straight 2 of 5 IATA,Matrix 2 of 5,Code 11,Code 128,GS1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,MSI,GS1 DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,China Post(Hong Kong 2 of 5),Korea Post. |
| 2D: PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN, DOT Code, Codeblock, etc. | |
| Electric voltage | 5V DC |
| Current | Work Current 320mA, Stand-by Current 235mA, Starting Current 315mA |
| Ambient Light Immunity | 0-100,000 Lux |
| Mechanical parameters | |
| Dimensions | 140.20mm x 84mm x 90.10mm |
| Weight | 249g |
| Enviromental parameter | |
| Working temperature | -20℃～60℃ |
| Storage temperature | -30℃～70℃ |
| Humidity | 5% to 95% relative hum idity,non-condensing |
| Drop test | 2m |
Packaging Details
Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.
Single Package Size: 170*120*105mm
Single Gross Weight: 0.35kg
30pcs/CTN Carton Size: 520*425*370mm
30pcs/CTN Carton G.W.:12Kg, N.W:11Kg
