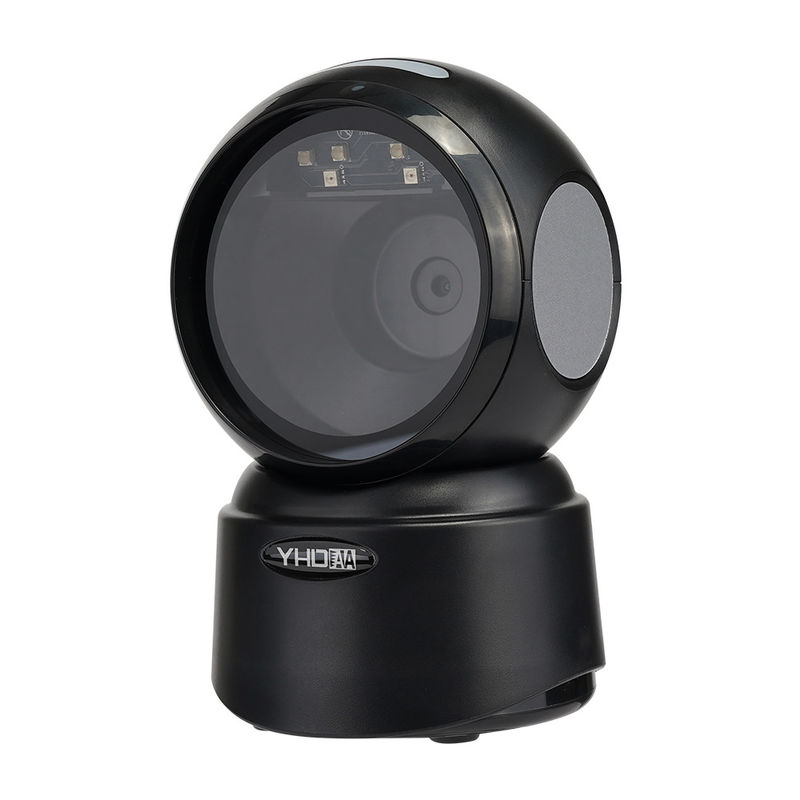

Desktop Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-9300D |
The Desktop Barcode Scanner is the perfect solution for retail stores looking for an efficient and reliable way to manage their inventory. Its compact size and easy setup make it ideal for any store, and its decoding capability for 1D/2D barcodes makes it an excellent choice for tracking stock and ensuring accuracy.
● Ideal work for Windows XP/7/8/10, Mac OS, Linux.
● 1800 times/ second, ultra-fast decoding speed and high accuracy.
● Made of high quality material, durable and not easy to damage.
● Can easily capture bar codes 1D, 2D/QR on labels, paper, and mobile phone or computer displays.
● Handsfree barcode scanner improve your efficiency with infrared auto-sensing sensor.
● Can directly fixe it onto your desk or table, no need to pick up the scanner when scanning, improving working efficiency, save your time.
● Application fields: retail shop, clothing store, supermarket, library, book store, pharmacy store, warehouse, parking system etc.
| Product Specification: YHD-9300D 2D Desktop Barcode Scanner | |
| Scanner parameters: | |
| Optical resolution | CMOS 640 pixels (H) x 480 pixels (V) |
| Lighting source | red LED supplement |
| Resolution | ≥4mil |
| Scanning speed | 1800 times/s |
| Scanning angle | Roll 360°/ Pitch ±65°/ Yaw ±65° |
| Field of View | 39°(H) X29°(V) |
| Sweeping barcode type | paper, thin film medium one-dimensional; mobile phone, flat screen, etc. |
| Printing contrast | 20% |
| Error rate | ≤1/2,000,000 |
| Interface type | USB |
| Prompt mode | Buzzer, LED |
|
Decoding Capability
|
1D: Codabar,Code 39,Code 32 Pharmaceutical (PARAF),Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industrial,Straight 2 of 5 IATA,Matrix 2 of 5,Code 11,Code 128,GS1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,MSI,GS1 DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,China Post(Hong Kong 2 of 5),Korea Post. |
| 2D: PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN, DOT Code, Codeblock, etc. | |
| Electric voltage | 5V DC |
| Current | Work Current 320mA, Stand-by Current 235mA, Starting Current 315mA |
| Ambient Light Immunity | 0-100,000 Lux |
| Mechanical parameters | |
| Dimensions | 140.20mm x 84mm x 90.10mm |
| Weight | 249g |
| Enviromental parameter | |
| Working temperature | -20℃～60℃ |
| Storage temperature | -30℃～70℃ |
| Humidity | 5% to 95% relative hum idity,non-condensing |
| Drop test | 2m |
Packaging Details
Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.
Single Package Size: 170*120*105mm
Single Gross Weight: 0.35kg
30pcs/CTN Carton Size: 520*425*370mm
30pcs/CTN Carton G.W.:12Kg, N.W:11Kg
