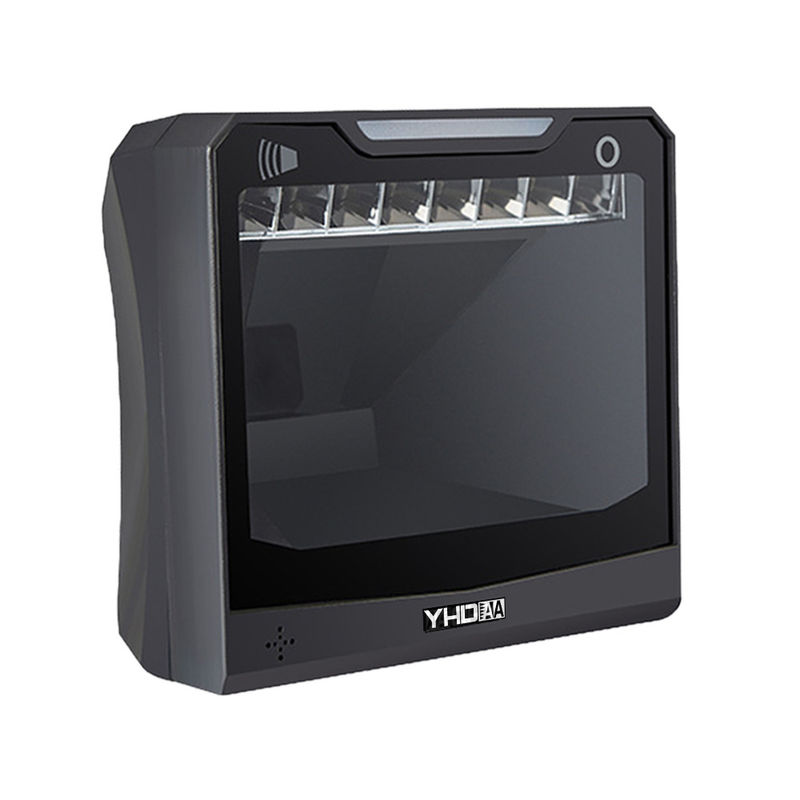

High Speed Hand Free 2D CMOS Desktop Barcode Scanner Omnidirectional Scanner
Desktop Barcode Scanner is the ideal solution for applications in supermarkets, retail stores, warehouses, libraries, and other environments. With 2D omnidirectional scanning capabilities, it is able to scan 1D and 2D barcodes quickly and accurately. Its scanning performance is boosted by its 1280 Pixels (H) X 1024 Pixels (V) CMOS optical resolution, and the red LED supplement lighting source ensures a powerful output for scanning in low-light environments. The buzzer and LED prompt mode provide a visual and audible response to indicate successful scans. Interfacing with the system is easy with its USB connection, allowing for fast and reliable data transfer.
1.Features
● No need to install any software or app,Plug and play.
● Touch screen volume control button, easily deal with noisy environment.
● Resolution up to CMOS 1280 pixels (H) x 1024 pixels (V) ,ultra-fast decoding speed.
● Handsfree and auto-sense scan design, can directly place on the desk, no need to hold the scanner, release your hands.
● Big scan window design,360 degree omnidirectional scanning regardless of the orientation of the barcode label, will quickly read the barcode.
● Easily connected with your laptop, PC, POS. Work with Windows XP/7/8/10, Mac OS, Linux.
● Application fields: retail shop, clothing store, supermarket, library, book store, pharmacy store, warehouse, parking system etc.
| Product Specification: YHD-9500D 2D Desktop Barcode Scanner | |
| Scanner parameters: | |
| Optical resolution | CMOS 1280 pixels (H) x 1024 pixels (V) |
| Lighting source | Warm Yellow LED |
| Resolution | 4mil |
| Scanning speed | 2600 times/s |
| Scanning angle | Roll 360°/ Pitch ±65°/ Yaw ±65° |
| Field of View | 44°(H) X34°(V) |
| Sweeping barcode type | paper, thin film medium one-dimensional; mobile phone, flat screen, etc. |
| Printing contrast | 20% |
| Error rate | ≤1/2,000,000 |
| Interface type | USB |
| Prompt mode | Buzzer, LED |
|
Decoding Capability
|
1D: Codabar,Code 39,Code 32 Pharmaceutical (PARAF),Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industrial,Straight 2 of 5 IATA,Matrix 2 of 5,Code 11,Code 128,GS1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,MSI,GS1 DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,China Post(Hong Kong 2 of 5),Korea Post. |
| 2D: PDF417, QR code, MicroPDF417, Australian Post, Canada Post,Japan Post, MaxiCode, Codablock, Aztec,Dutch Post, DataMatrix, etc. | |
| Electric voltage | 5V DC |
| Current | Work Current 456mA, Stand-by Current 220mA, Starting Current 470mA |
| Ambient Light Immunity | 0-100,000 Lux |
| Mechanical parameters | |
| Dimensions | 151mm x 142mm x 84mm |
| Weight | 348g |
| Enviromental parameter | |
| Working temperature | -20℃～60℃ |
| Storage temperature | -30℃～70℃ |
| Humidity | 5% to 95% relative hum idity,non-condensing |
| Drop test | 2m |
3.Packaging Details
Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.
Single Package Size: 245*165*105 mm
Single Gross Weight: 0.7kg
15pcs/CTN Carton Size: 525*430*360mm
15pcs/CTN Carton G.W.:23Kg, N.W:21Kg
