2D Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-1200D |

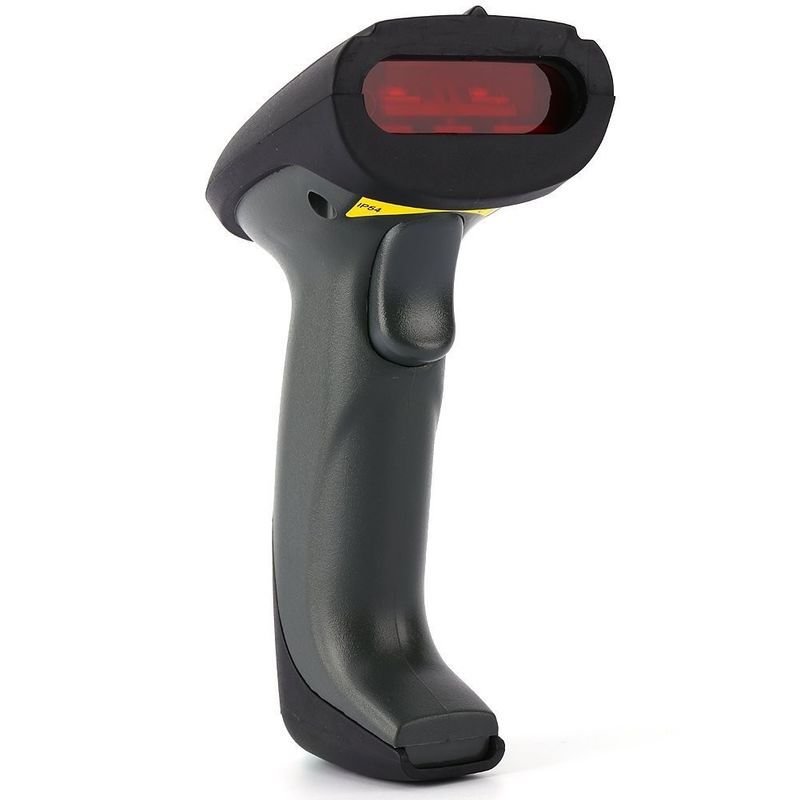

USB 2D Barcode Reader Wired Bar Code Scanner Auto Sensing For Retail YHD-1200D
YHD-1200D USB barcode scanner with a USB cable for connection, no need to install any driver and software. compatible with Windows, Mac, Android, and Linux, and works with Quickbook, Word, Excel, Novell, and all common software.
Features
● Applying CMOS image technology, easy to scan.
● IP54 standard and withstand 3M drops.
● Multi Languages Keyboard Layout.
● Supports 1D/2D bar-codes on paper/screen.
● Three scanning modes setting: Handheld,Continuous,Auto-Induction.
● Support commercial barcode ,pharmacy barcode ,logistical barcode ,post barcode ,folding barcode ,small barcode ,barcode covered by film and unclearly printed barcode.ect.
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
● Can be customized according to customer demand.
Technical parameters
Sensor : CMOS
Trigger mode : Handheld,Continuous,Auto-Induction
Hull material : ABS+Rubber
Promotion pattern : Buzzer and LED indicator
Resolution Ratio : 640*480
Decoding speed : 500scans/sec
Resolution : 4mil
Decoding capacity 1D : UPC-A, UPC-E, Code 39, Code 39, Code 128, Code 128, EAN128, EAN-8, EAN-13, Codabar,Code93, Discrete2of5, IATA,RSSvariants,Codabar,Industrial 2 of 5,Chinese 2 of 5,Inteleaved2/5,Interleaved2of5 and China postal service code,etc.
2D : PDF417, QR, Aztec, DataMatrix, Maxicode, MicroPDF417,etc.
System Capacity : For Linux/ Android/ Windows XP/Vista/7/8/10/ Windows Server 2003/2008/2010
Depth of Field : Code39 4mil(2cm-8cm),Code39 8mil(3cm-15cm),EAN13 13mil(6cm-29cm),DM 15mil(2cm-14cm),QR 15MIL(2cm-30cm),PDF417 15mil(4cm-30cm)
Voltage : 5V DC
Temperature Storage : -40°C ~ 60°C Working: -20℃ to 50℃
Relative Humidity : 0 ~ 95%
Drop test : 3m fall to concrete
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner *1, USB Cable *1, Manual *1, Box *1.
Single Package Size: 167*80*100mm
Single Gross Weight: 0.3kg
