2D Barcode Scanner
>
|
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-1100D |

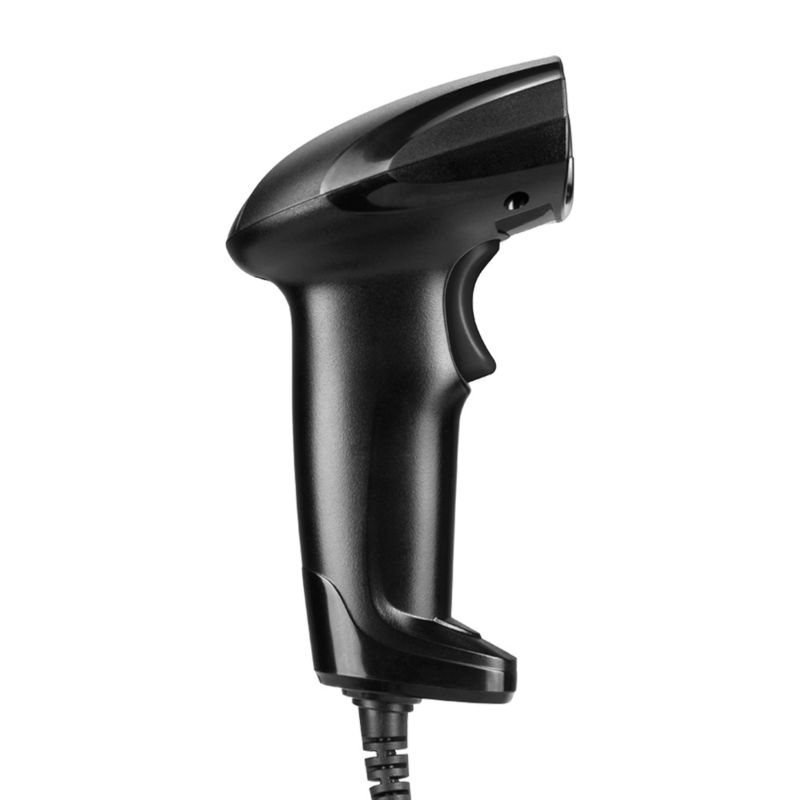

YHDAA QR Code Reader,Factory Direct Sale Handheld Fast and Precise Scan Barcode Scanner
Powerful decode ability, fast scanning 1D/2D barcodes.2D barcode scanner with the superior decoding capability to work with most 1D 2D barcodes. 1D Barcodes: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, Code 11, Industrial 25, Matrix 2 of 5, etc. 2D Barcodes: QR, DataMatrix, PDF417, and so on.
Features
● Factory direct sale, Low price high performance.
● No driver needed, plug and play.
● Support reading bar codes from screen.
● Applying CMOS image technology, easy to scan.
● Powerful decode ability, fast scanning 1D/2D barcodes.
● Support the multinational language keyboard.
● Supports Handheld / Continuous / Auto-Induction , 3modes for option.
● Dopt a highly integrated design, high quality shell, have IP45 protection grade.
● Support connection with computer, laptop. Compatible Operating System for Linux, Windows XP,7,8,10.
● Application fields:Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.
Technical parameters
CPU : ARM 32-bit Cortex
Sensor : CMOS 640*480
Resolution : 4mil
Light aimer : 624nm LED
Printing Contract : ≥25%
Material : ABS+PC
Indication : Buzzer & LED
Interface : USB / RS232 / TTL / KBW
Decoding speed : 500scans/sec
Anti inference : 0-100000Lux Max
Button life : 5000,000 times Voltage:5V DC
Depth of Field : 13mil-EAN13 40-250mm,4mil-code39 50-90mm,20mil-QR 40-290mm,10mil-PDF417 40-260mm
Decode Capability :
1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,RSS,Codabar,ISBN,ISSN,GS1 DataBar(RSS14)etc.
2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Trigger Mode : Handheld,Continuous, Auto-Induction
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.
Single Package Size: 185*120*86mm
Single Gross Weight: 0.45kg
